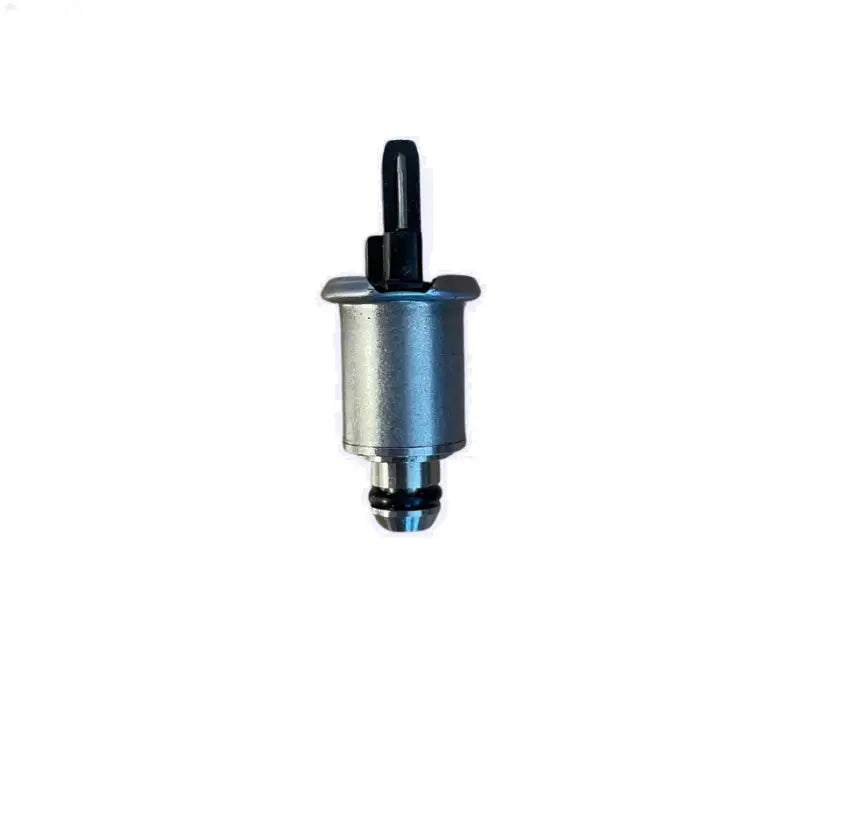

Haldex Pressure Sensor – Gen 2 & Gen 3

Haldex Pressure Sensor – Used OEM (Gen 2 & Gen 3 AWD)

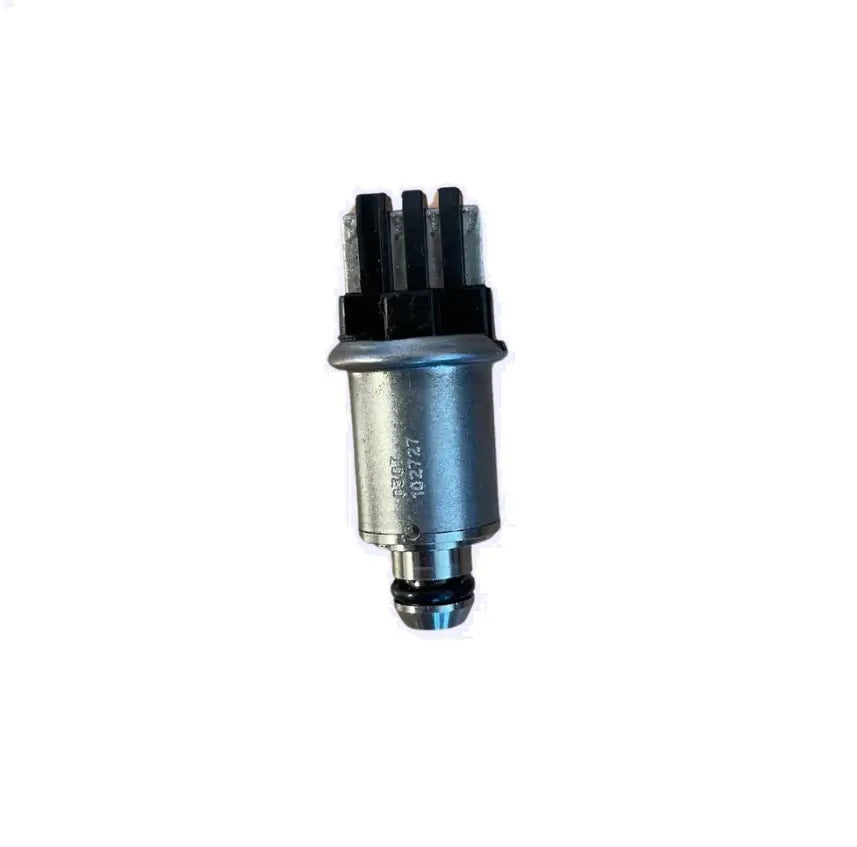

Used OEM Haldex pressure sensor (40 bar) with part numbers 30651694 / 02D598270 / 7F93‑4B487‑AA, compatible with second and third generation Haldex AWD systems. It plays a key role in monitoring clutch pressure and regulating AWD engagement. Commonly used in VW, Audi, Škoda, Volvo, Land Rover and Ford all-wheel drive vehicles (2003–2011).

Fully functional, visually inspected, cleaned and supplied with a new sealing washer. Resolves typical faults such as 02249 – pressure too low or 02248 – valve fault.

Product Details

• Condition: Used, fully functional original sensor from Haldex clutch
• OEM part numbers: 30651694, 02D 598 270, 7F934B487AA
• Sensor: 40 bar – black
• Manufacturer: BorgWarner

Compatible Vehicles (2003–2011)

• Volvo AWD: V70, S60, XC90, XC70, S80, S40, V50
• Audi 4x4: A3, TT
• Seat 4x4: Altea
• Škoda 4x4: Octavia II
• Volkswagen 4x4: Multivan T5, Golf V, Transporter T5, Passat B6
• Land Rover: Freelander 2 AWD

Diagnostic Fault Codes

02249 – Pressure too low  |  02248 – Valve fault

Important Notes

• Worldwide shipping – if your country is not listed at checkout, contact us and we will process your order personally.
• Please verify that this part is compatible with your vehicle before ordering.
• Have questions or need advice? Send us an email.
